Kant and Hegel in Physics
-
Y. S. Kim
Center for Fundamental Physics, University of Maryland,
College Park, Maryland 20742, U.S.A.
e–mail: yskim@umd.edu
http://www2.physics.umd.edu/~yskim
Kant and Hegel are among the philosophers who are guiding the way in which we reason these days. It is thus of interest to see how physical theories have been developed along the line of Kant and Hegel. Einstein became interested in how things appear to moving observers. Quantum mechanics is also an observer-dependent science. The question then is whether quantum mechanics and relativity can be synthesized into one science. The present form of quantum field theory is a case in point. This theory however is based on the algorithm of the scattering matrix where all participating particles are free in the remote past and in the remote future. We thus need, in addition, a Lorentz-covariant theory of bound state which will address the question of how the hydrogen atom would look to moving observers. The question is then whether this Lorentz-covariant theory of bound states can be synthesized with the field theory into a Lorentz-covariant quantum mechanics. This article reviews the progress made along this line. This integrated Kant-Hegel process is illustrated in terms of the way in which Americans practice their democracy.
https://arxiv.org/pdf/2009.06198.pdf (September 20, 2020)
The content of this article was included in a recent book by Sibel Baskal,
Young S. Kim, and Marilyn E. Noz, entitled
Physics of the Lorentz Group: Beyond High-energy Physics and
Optics, published by the IOP (British Institute of physics).
1. Introduction
-

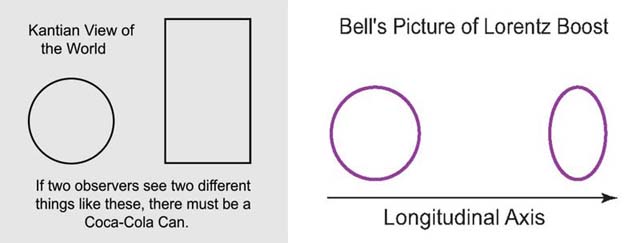

Let us look at a Coca-Cola can. It is a circle if we see it from its top,
and its side view is a rectangle, as illustrated in Figure 1.
How would it then appear to a moving observer.
This is of course an Einsteinian problem. Einstein studied the philosophy
of Kant during his high school years. It is thus natural for him to ask
this question.
Niels Bohr was interested in the electron orbit of the hydrogen atom. It is well known how his efforts led to the present form of quantum mechanics. The wave function of the hydrogen atom consists of the rotation-invariant radial function and the angular function consisting of spherical harmonics and spinors. The angular function tells how the orbit looks to observers looking at different angles. This is called the rotational symmetry in physics. The question is how this atom would appear to observers in motion.
This is a Kantian question. The observer is in a different environment. Einstein formulated this problem with a mathematics called the Lorentz group. His Lorentzian system consists of three rotations around three different directions in the (x, y, z) space, three Lorentz boosts in those directions, and three translations along these different directions, plus one translation along the time. There are thus ten operations in the Lorentzian system. three translations along the three different directions. The mathematics governing these ten operations is called the inhomogeneous Lorentz group {Wigner 1939]. The main purpose of this paper is to examine how the hydrogen appears to moving observers in terms of the way Kant and Hegel suggested. We can then ask whether quantum mechanics and special relativity can be synthesized.
In Section 2, we examine how the idea of Kant and that of Hegel can be integrated into a single Kant-Hegel procedure in physics. In Section 3, we review the attempts made in the past to synthesize quantum mechanics and special relativity. It is noted that the present form of quantum field theory can only deal with scattering problems. It is noted also that Paul A. M. Dirac made his life-long efforts to construct bound-state wave functions that can be Lorentz-boosted. By integrating those efforts. It is shown possible to construct harmonic-oscillator wave functions that can be Lorentz-boosted.
In Section 3, we examine whether this Lorentz-transformable wave function can explain what we see in the real world. Let us pick a proton which is a bound state of more fundamental particles called quarks [2]. When it moves with a speed close to that of light, it appears as a collection of free particles called partons [4]. Why does the same proton appear differently? This is precisely Einstein’s Kantian question. After settling the issue of bound states in the Lorentzian system. We are led to the question of whether quantum mechanics and Einstein’s special relativity can be derived from the same set of mathematical formulas. It is noted that Dirac in 1963 started with two harmonic oscillators satisfying the Heisenberg uncertainty brackets [3]. He then noted that the symmetry from these two oscillators is like that of the Lorentz transformations applicable the five dimensional space with three space coordinate and two time-like coordinates.
In Section 4, it is shown that the second time variable in this five dimensional space can be transformed to the translations along the three space-like directions and one time like direction, just like Einstein’s Lorentzian system. Indeed, quantum mechanics and special Einstein’s Lorentzian system. Indeed, quantum mechanics and special relativity can be derived from the same set of equations, namely the Heisenberg brackets.
Kant and Hegel developed their theories based on the human societies and histories, not on physical theories. It is thus easier to illustrate the integrated Kant-Hegel mechanism in terms of history. The history of the United States is short and transparent. In the Appendix, we shall examine the role of Kant and Hegel while Americans practice their democracy.
2. Integration of Kant and Hegel
According to Kant, many things should become one, the ding-an-sich. They just look differently depending on the observer’s environment and state of mind. According to Hegel, we can create a new wonderful world by synthesizing two different traditions. His philosophy was based on the history. He realized that Christianity is a synthesis of Jewish ethics and Greek philosophy. How can we integrate Kant and Hegel? Kant wanted to derive one from many. Hegel wanted to derive one from two.
Thus, we need a mechanism which will lead many to two, between Kant and Hegel. This way of thinking was developed by ancient Chinese. After the ice age, many people with different backgrounds came to the banks to China’s northern river. They drew pictures to communicate, and this led to Chinese characters. In order to express their feelings, they sang songs. This is the reason why there are tones in spoken Chinese. How about different ideas? They realized they cannot be united to one. They thus divided them into two opposing groups, namely Yang (plus) and Ying (minus). This way is known as Taoism.
Kant was born in East Prussia (now Kaliningrad, Russia), and spent 80 years of his entire life there. Thus, his way of thinking was framed by what he saw every day. His area was a maritime commercial hub of the Baltic Sea, just like Venice in the Mediterranean world. Many people came to Kant’s place with many different points of view for the same thing. Thus, Kantianism and Taoism were developed in the same way, as illustrated in Figure 4. Kant wanted one, but Chinese had to settle with two. Thus, Taoism can stand between Kant and Hegel. We can thus integrate Kant and Hegel by placing Taoism between them. We can illustrate this integrated Kant-Hegel system in terms of the history of the United States. Europeans with different backgrounds came to the new land and settled down in many different areas. They then set up their own government. In order to develop their laws and national policies, they developed two different political parties. These two parties produce the laws and policies applicable to all citizens. This American system is admired by many people of the world. This is an integrated Kant-Hegel system, as is illustrated in Figure 4.
In the past, the physical laws were developed according to this integrated Kant-Hegel process. Physicists like to unite many different events into one formula or one set of formulas. There are many heavenly bodies. They can be divided into two groups, namely comets (with open orbits) and planets with (localized orbits). Isaac Newton synthesised these two groups into one with his second-order differential equation. This is a Hegelian process. James Clerk Maxwell synthesised the equations governing electricity and those for magnetism into a set of four equations. This created the present-day wireless civilization. As is well known, the present form of quantum mechanics is a synthesis of particle nature and wave nature of matter. Einstein’s special relativity synthesizes massive and massless particles. All these are the integrated processes of Kantianism and Hegelianism. The remaining problem is whether quantum mechanics and Einstein’s relativity can be synthesised. In this paper, we restrict ourselves to his special relativity, even though his general relativity receives more public attention these days. Einstein’s nickname is still E = mc2, which was a product of his special theory of relativity.
3. Synthesis of Quantum Mechanics amd Special Relativity
-
The present form of quantum mechanics was developed for the Galilean
system. While the Galilean system operates with three translations and
three-rotations on the space of (x, y, z), the time variable does not
interfere with the coordinate transformations. However, was stated in
Section 1, the space and time of Einstein’s special
relativity is based on the Lorentzian system. This system operates in
the four-dimensional space of (x, y, z). In this Lorentzian system,
there are rotations in the three-dimensional space of (x, y, z).
In addition, when the observer moves with a constant speed, the time
variable comes in. We call the observer’s velocity change ``Lorentz
boost.'' The boost can be made in three different directions. We call
this symmetry system Lorentz covariance. In additional, there are four
translations along the four-dimensional space. Let us call the system
of these three rotations, three boosts, and four translation the
Lorentzian system.

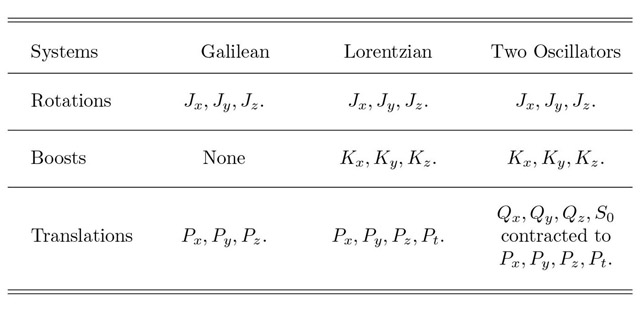

The difference between the Galilean system and the Lorentzian system is spelled out in Table 1. Quantum mechanics was originally developed in the Galilean system, but it was a great challenge during the 20th Century to construct quantum mechanics in the Lorentzian space and time.
Quantum field theory is a case in point. The mathematical algorithm of this theory is based on the scattering matrix where all participating particles are free in the remote past and free in the remote future. For making computations of the scattering matrix, Feynman diagrams provide mathematical transparencies with excellent physical interpretations. How about bound-state particles? The particles are not free in the remote past and remote future.

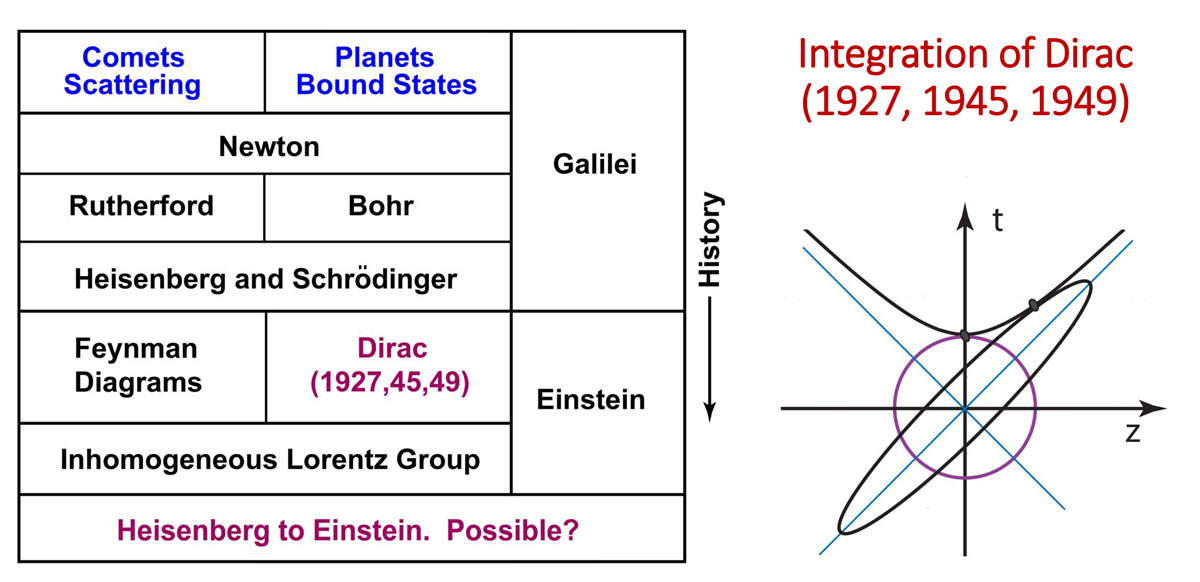

As indicated in Figure 5, our understanding of bound states and scattering states did not go together all the time. As Feynman suggested [5], while Feynman diagrams are useful for running waves, we can use harmonic oscillators to understand quantum bound states in the Lorentzian system. In their paper of 1971, however, Feynman et al. did not do a very good job in constructing the harmonic oscillators in the Lorentzian world. Their oscillator wave functions increase as the time separation variable become large. Thus, their wave functions are meaningless in quantum mechanics Indeed, before Feynman et al., Dirac attempted to construct a representation of the Lorentz group using harmonic oscillator wave functions [6]. Before 1971, a number of authors wrote down Lorentz-covariant oscillator wave functions [8,9,10].
Let us go back to Figure 5, it is important to note that both the Feynman diagrams and the oscillator formalism given in this section can be constructed from the same set of commutation relations, which is known as the Lie algebra of the inhomogeneous Lorentz group [12]. It is also important note that the Feynman diagrams and the Lorentz-covariant oscillator wave functions are constructed from the same set of physical principles governing quantum mechanics and special relativity [21].
4. Quark-parton Puzzle
-
One hundred years ago, Bohr and Einstein met occasionally to
discuss physics. Bohr was worrying about the electron orbit of
the hydrogen atom, while Einstein’s main interest was how things
appear to moving observers. Thus, they could have talked about
how the hydrogen atom looks to a moving observer. However,
there are no records indicating that they ever talked about
this issue. If they did not, they are excused. There were
and still are no hydrogen atoms moving with relativistic speeds.
Since the total charge of the hydrogen atom is zero, it cannot
be accelerated even these days.
- Feynman’s parton picture is valid only for protons moving with velocity close to that of light.
- The interaction time between the quarks becomes dilated, and partons behave like free independent particles.
- The momentum distribution of partons becomes widespread as the proton speed increases.
- The number of partons seems to be infinite or much larger than that of the constituent quarks.
On the other hand, modern particle accelerators routinely produce many protons moving with the speed very close to that of light. These protons are not hydrogen atoms. However, they are also bound states within the same framework of quantum mechanics. As indicated in Figure 7, it is possible to study moving hydrogen atoms by looking at moving protons. Indeed, according to the quark model [2], the proton is a quantum bound state of three quarks. Then the question is how the proton appears when it moves fast. In 1969, Feynman observed that the proton looks quite differently when it moves with ultra-fast speed [4]. It appears like a collection of light-like particles. Feynman called them partons. These partons have the following peculiar properties.
The question is whether it is possible to explain Feynman’s parton picture within the framework of quantum mechanics and special relativity. In order to answer this question, we need a bound-state wave function which can be Lorentz-boosted. In Section 4, we constructed the Gaussian function that can be Lorentz-boosted. The Gaussian function is different from the wave function for the hydrogen atom, but both wave functions share the same quantum mechanics. In 1964, Gell-Mann proposed the quark model for hadrons. The hadrons are bound states of the quarks, and their mass spectra are like those of the harmonic oscillators [5]. The proton is a hadron and is a bound state of three quarks. In the oscillator regime, the wave function for this three-body system is a product of two wave functions [5]. It is thus sufficient to study the Lorentz-boost property of the two-quark system which was discussed in Section 4. In the oscillator system, the momentum wave function of the Gaussian wave function is also Gaussian, and it becomes Lorentz-squeezed exactly in the same way as in the case of the space-time wave function. Thus, we can extend Figure 6 to Figure 8 [13,16].
Figure 8. Space-time and momentum energy wave functions. As the hadronic speed reaches that of light, both wave functions become concentrated along one of the light cones. |
Indeed, according to this figure, the quarks become light-like particles with a wide-spread momentum distribution, interacting with an external like free particles. Furthermore, since they are like light-like, the particle number is not constant as in the case of black-body radiation. Thus, this figure provides the answers to all of the puzzles raised on the parton picture listed earlier in this section. As was stated before, the proton wave function is a product of two oscillator wave functions. Using this wave function, Paul Hussar computed the parton distribution function for the proton, and it is in reasonable agreement with the observed parton distribution [25]. Let us go to Table 2. The Lorentz-covariant oscillator, which can be viewed as an integration of Dirac’s papers, provides a one formula for the proton at rest (quark model) and the ultra-fast proton (parton picture). The second row of this table is about the role of Wigner’s little group for internal space-time symmetries [26]. This row tells that Wigner’s little groups explain why the internal space-time symmetries appear differently to moving observers. Again, this is a Kantian problem and was discussed detail in the literature [13,14,16,17,18].
| ||||
| ||||
| ||||
| ||||
Click here for further contents of this table. |
- Table 2. Further contents of Einstein’s E = mc 2.
The first row of this table in well known. The second table is for internal
space-time symmetries, the photon spin along the direction of momentum
remains invariant, but the perpendicular components become one gauge
degree of freedom [14,17]. The covariant oscillator explains the
peculiarities of Feynman’s parton picture.
4. Integration of Quantum Mechanics and Special Relativity
-

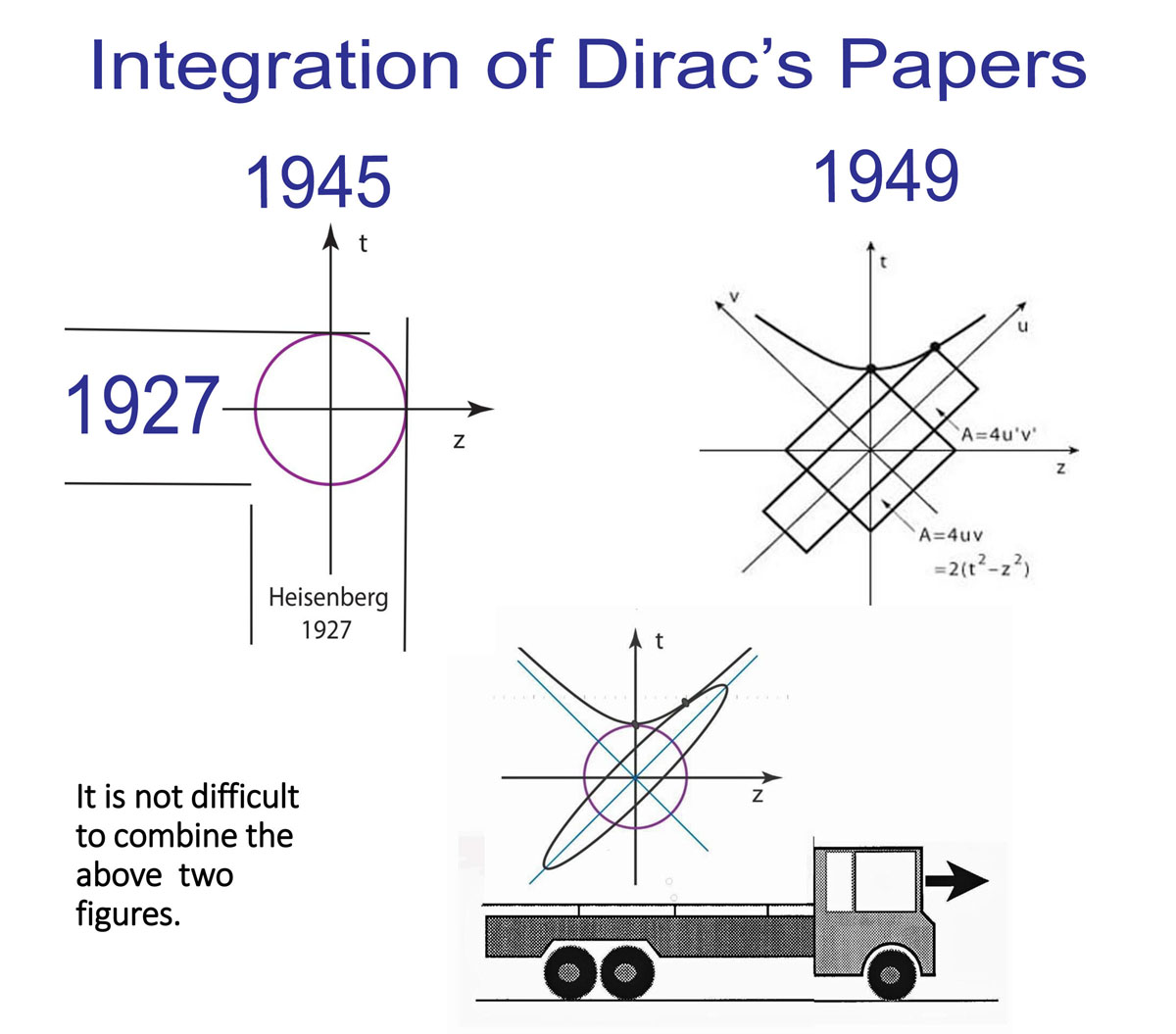

In Secs. 2 and 3, we observed that it is possible to construct
harmonic oscillator wave functions that can be Lorentz-boosted.
Furthermore, it can settle the one of the Kantian problems we
observe in high-energy laboratories producing ultra-fast protons.
In addition, we noted that the covariant oscillators and quantum
field theory can be constructed within the same Lorentzian system.
They also share the same set of physical of physical principles.
In that case, we are led to the question of whether these two scientific disciplines can be derived from the same set of equations. For this purpose, Dirac considered two harmonic oscillators. For the single-oscillator system, we can use the step-up and step-down operators to write down Heisenberg’s uncertainty brackets.
For the two-oscillator system, there are four such operators. Dirac constructed ten quadratic forms with those step-up and step-down operators. He then noted that they satisfy the closed set of commutation relations which is the same as that for the generators of the Lorentz group applicable to the five-dimensional space consisting of three space coordinates (x, y, z) and two time coordinates t and s [3].

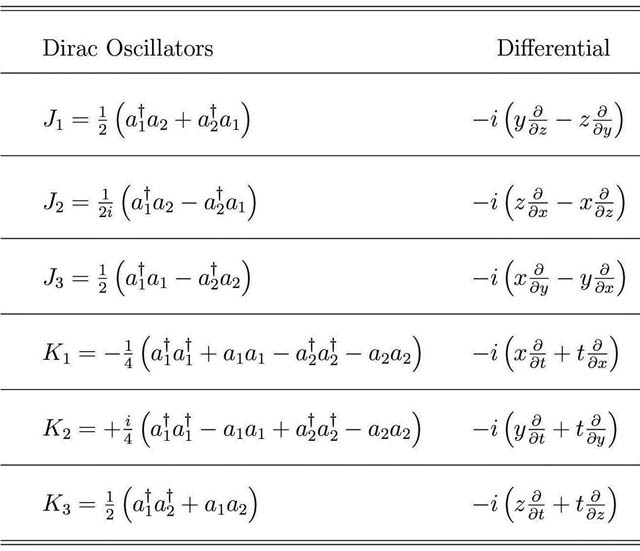

Table 3 gives three rotation generators and three boost generators with respect to the time variable t, along with corresponding Dirac’s two-oscillator forms. The operators of this table do not depend on the second time variable s. The J operators there generate rotations in the three-dimensional space (x, y, z), and the K operators generate Lorentz boosts along those three different directions. Thus, the six operators given in Table generate the Lorentz group familiar to us.
Table 4. Four additional quadratic forms in Dirac’s paper of 1963. They correspond to the generators operating on the second time variable. |
In addition to the six quadratic forms given in Table 4, Dirac constructed four additional quadratic forms. They correspond to the differential operators given in Table 4. The differential operators in Table 4 do not depend on the time variable t, but depend only on the second time variable s. We are now interested in converting the differential forms in this table into four translation generators, using the group contraction procedure introduced first by Inonu and Wigner [22]. In their original paper, Inonu and Wigner obtained the Galilean system from the Lorentzian system. Since then, this contraction procedure was used for the unification of Wigner’s little groups for massive and massless particles [14,16,17].
This contraction procedure tells us to fix the s variable and set s = 1 for the generators given in Table 4 [19,20]. They then become contracted to the translation generators given in Table 5. Indeed, the six generators of the Lorentz group given in Table 1, together with the four translation generators constitute the generators of the inhomogeneous Lorentz group or Einstein’s Lorentzian system of space and time. This process is compared with the traditional Galilean and Lorentz systems in Table 1.
Let us go back to Figure 5. This figure asks whether it is possible to derive Einstein’s Lorentzian world from the principles of quantum mechanics. The answer to this question is YES. While the Dirac’s oscillator algebra is derivable from the Heisenberg brackets, the Heisenberg brackets are also derivable from the oscillator algebra. Thus, both quantum mechanics and special relativity are derivable from the same set of equations. The synthesis of quantum mechanics and special relativity is now complete.
Concluding Remarks
-
Kant and Hegel are very familiar names to us. They formulated
their ideas based on what they observed and what they learned. It
is interesting to note that Einstein started as a Kantianist but
become a Hegelianist while doing physics. Indeed, physics develops
along the integrated Kant-Hegel line. The most pressing task of
our time in physics is a Hegelian synthesis of quantum mechanics
and theories of relativity. For the single-oscillator system, we
can use step-up and step-down operators to write down Heisenberg’s
uncertainty brackets. For the two-oscillator system, there are
four such operators. Dirac constructed ten quadratic forms with
those step-up and step-down operators. He then noted that they
satisfy the closed set of commutation relations which is the
same as that generators of the Lorentz group applicable to the
five-dimensional space consisting of three space coordinates
(x, y, z) and two time coordinates t and s [3].
In this paper, it is pointed out that those ten generators can be
transformed to the ten generators of Einstein’s Lorentzian system.
Thus, quantum mechanics and special relativity come from the same
set of equations.
Acknowledgments
-
I came to the University of Maryland in 1962 as an assistant professor
one year after I received my PhD degree from Princeton in 1961.
At that time, the chairman of the physics department was John S. Tall.
He invited Paul A. M. Dirac to his department for ten days in October
of 1962, and he assigned me to be a personal assistant to Dirac. I
asked Dirac many questions, but Dirac’s answer was very consistent.
American physicists should study more about Lorentz covariance and its
difference from the Lorentz invariance. Why was he saying this?
Three months earlier (in July 1962), Dirac met Feynman in Poland during a relativity conference organized by Leopold Infeld. The photo of their meeting was later published on the cover of the Physics Today, as shown in Figure 5. After reading the 1971 paper by Feynman et al. [5], it became clear to me that Feynman and his younger co-authors did not understand the difference between the covariance and invariance in the Lorentzian world. This is the reason why they ignored the Lorentz-covariant oscillator wave functions which existed in the literature before 1971. When Dirac was telling me about the weakness of American physicists in 1962, he was talking about Feynman he met three months earlier in Poland.
Yet, the names of Feynman and Dirac are prominently displayed in the history table given in Figure 5. They have been and still are my great inspirational figures, and I have been eager to place them into one box according to the Hegelian process of synthesis. In order to show my gratitude toward them, I visited in 2013 the Jabllona Palace north of Warsaw where they met in 1962, as shown in Figure 9. In had the pleasure of my photo taken at the spot where they spoke to each other. Their photo shows a lack of communication between them. It has been a great challenge for me to fix the gap between them. Finally, I am indebted to John S. Toll who provided my meeting with Dirac in 1962. He was always helpful to me whenever I whenever needed help throughout my academic career.
Appendix
-
Traditionally, philosophers wrote their theories based on the religion,
history, cultural conflicts. Their theories are quite separate from
physical phenomena. Thus, it is much easier to illustrate their
philosophies using historical developments.
The history of the United States is short and transparent. After the first journey of Christopher Columbus (1492-93), many Europeans moved to the New Land. In 1776, the Declaration of Independence was ratified. This document was written before Kant and Hegel became prominent, and it does not say anything about political parties.
In practice, these days, the democratic system of the United States is functioning with two political parties. Americans did not construct this system based on any theories of government written before. They constructed this system while practicing their democracy. How did they construct? The country consisted of many different ethnic groups with different cultural backgrounds. They were spread over many different areas in the North American continent. How it is possible to construct a national policy satisfactory to all those citizens?
While practicing democracy, it is necessary to construct one national policy based on all different opinions. Thus, the Kantian process of many-to-one is desirable. However, it is not practical. Therefore, the more practical solution was to place those many opinions into two different groups. It is then possible to "synthesize" two opinions into one, according to the Hegelian synthesis. This process is illustrated in Figure 4, which was used to illustrate the way in which Einstein developed his theories.
References
- Bell, J. S. (2004),
Speakable and Unspeakable in Quantum Mechanics,
Collected Papers on Quantum Philosophy 2nd Ed., Cambridge
Univ. Press: Cambridge, UK.
- Gell-Mann, M. (1964), Schematic Model of Baryons and Mesons,
Phys. Lett. {8}, pp 214 - 215.
- Dirac, P. A. M. (1963),
A Remarkable Representation of the 3 + 2 de Sitter Group,
J. Math. Phys. {4}, 901 - 909.
- Feynman, R. P. (1969),
Very High-Energy Collisions of Hadrons,
Phys. Rev. Lett. {23}, 1415 - 1417.
- Feynman, R. P., Kislinger, M. and Ravndal F. (1971),
Current matrix elements from a relativistic quark model,
Phys. Rev. D {3}, 2706 - 2732.
- Dirac, P. A. M. (1945),
Unitary Representations of the Lorentz Group,
Proc. Roy. Soc. (London) {A183} 284 - 295.
- Yukawa, H. (1953),
Structure and Mass Spectrum of Elementary Particles. I.
General Considerations,
Phys. Rev. {91}, 415 - 416.
- Markov, M. (1956),
On Dynamically Deformable Form Factors in the Theory of Particles,
Suppl. Nuovo Cimento {3}, 760 - 772.
- Fujimura, K., Kobayashi, T., and Namiki, M. (1970),
Nucleon Electromagnetic Form Factors at High Momentum Transfers
in an Extended Particle Model Based on the Quark Model,
Prog. Theor. Phys. {43}, 73 - 79.
- Kim, Y. S. and Noz, M. E. (1973),
Covariant harmonic oscillators and the quark model, ,
Phys. Rev. D {8}, 3521 - 3627.
- Kim, Y. S., Noz, M. E., and Oh, S. H. (1979),
Representations of the Poincaré group for relativistic
extended hadrons,
J. Math. Phys. {20}, 1341 - 1344.
- Kim, Y. S. and Noz, M. E, (1977),
Covariant Harmonic Oscillators and the Parton Picture,
Phys. Rev. D {15}, 335 - 338.
- Han, D., Kim, Y. S., and Son, D. (1983),
Gauge transformations as Lorentz-boosted rotations,
Phys. Lett. B {131}, 327 - 329.
- Kim, Y.S. and Noz, M. E. (1986),
Theory and Applications of the Poincar\'e Group,
Reidel, Dordrecht, The Netherlands.
- Kim, Y. S. (1989),
Observable gauge transformations in the parton picture,
Phys. Rev. Lett. {63}, 348 - 351.
- Kim, Y. S. and Wigner, E. P. (1990),
Space-time geometry of relativistic particles,
J. Math. Phys. {31} 55 - 60.
- Kim, Y. S. and Noz, M. E. (2018),
New Perspectives on Einstein's E = mc2,
World Scientific, Singapore.
- Baskal, S., Kim, Y. S., and Noz, M. E. (2019),
Einstein's E = mc2 from Heisenberg's Uncertainty
Relations,
Quantum Reports {1(2)}, 236 - 251.
- Kim, Y. S and Noz, M. E. (2020),
Integration of Dirac’s Efforts to Construct
a Quantum Mechanics Which Is Lorentz-Covariant,
Symmetry {12(8)}, 1270.
- Han, D., Kim, Y. S., and Noz, M. E.(1981),
Physical Principles in Quantum Field Theory and in Covariant
Harmonic Oscillator Formalism,
Foundations of Physics {11} 895 - 903.
- Inonu, E. and Wigner, E. P. (1953),
On the Contraction of Groups and their Representations,
Proc. Natl. Acad. Sci. (U.S.), {39}, 510 - 524.
- Dirac, P. A. M. (1927),
The Quantum Theory of the Emission and Absorption,
Proc. Roy. Soc. (London) {A114}, 243 - 265.
- Dirac, P. A. M. (1949),
Forms of Relativistic Dynamics,
Rev. Mod. Phys. {21}, 392 - 399.
- Hussar, P. E. (1986),
Valons and harmonic oscillators,
Phys. Rev. D {23}, 2781 - 2783.
- Wigner, E. (1939),
On unitary representations of the inhomogeneous Lorentz group,
Ann. Math. {40}, 149 - 204.
